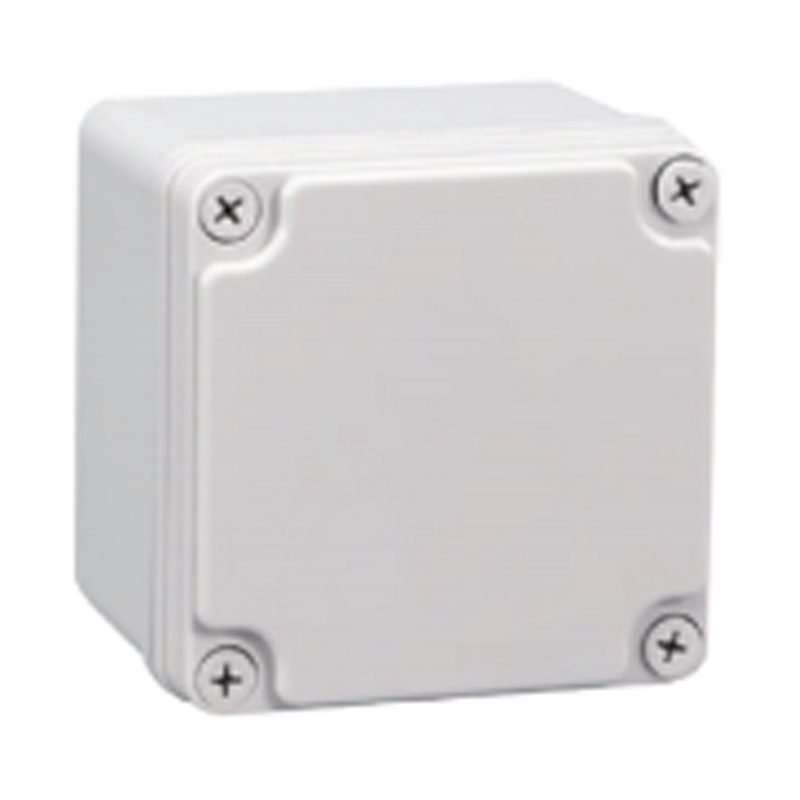

RO65 Plastic waterproof junction box

RO65 plastic waterproof junction box size: 65×30 (mm)

Multiple sealing/safety waterproof Waterproof IP rating (IP44)

Optional materials (usually ABS) ABS flame retardant, PC, alloy materials

PC flame retardant, safe and reliable/high-temperature resistance/electricity resistance/long life

Every part is carefully selected just to create a good product

Six core technical standards: flame-retardant shell, new streamlined appearance, waterproof and dustproof, sealing protection, tight-fitting design, quality after-sales service

What are the main features of the 8-way distribution box?

The 8-way distribution box is a widely used electrical component in residential, commercial, and industrial settings. Its primary function is to organize and distribute electrical circuits safely and efficiently. Understanding its main features can help users select the right type for their needs.

1. Multiple Circuit Accommodation

The 8-way distribution box is designed to manage up to eight individual circuits. This allows for efficient division of electricity among lighting, appliances, and other electrical systems. Each circuit can be protected by a separate miniature circuit breaker (MCB), ensuring that faults in one circuit do not affect others.

2. Compact Design

Despite accommodating eight circuits, the box maintains a compact and practical design. This makes it suitable for installation in limited spaces such as utility rooms, under stairs, or inside wall recesses. Its design balances functionality with space efficiency.

3. Safety Features

Safety is a crucial aspect of any distribution box. The 8-way distribution box is usually made from flame-retardant materials to reduce fire risks. It also includes protective barriers between circuits to prevent accidental contact, the risk of electrical shock.

4. Easy Installation and Maintenance

The box is designed for straightforward installation, with clearly labeled terminals and screw points. This allows electricians to connect wires quickly and efficiently. Maintenance is also simplified due to modular components, making it easier to replace or upgrade individual MCBs without disturbing the entire system.

5. Versatility and Compatibility

The 8-way distribution box is compatible with standard MCBs and residual current devices (RCDs). This flexibility makes it suitable for a wide range of applications, from small homes to medium-sized commercial spaces.

6. Aesthetic Considerations

Many modern 8-way distribution boxes feature a clean, minimalistic design with a cover that conceals wiring. This not only provides a neat appearance but also prevents dust and moisture from entering the box, contributing to long-term durability.

How is the waterproof cable junction box designed?

Waterproof cable junction boxes are essential in protecting electrical connections in environments prone to moisture, dust, and weather. Their design ensures safety, durability, and efficiency.

Sealed Enclosure

The core feature of a waterproof junction box is its sealed enclosure. Typically made from high-quality plastic or metal with corrosion resistance, the box prevents water and dust from entering. A tight-fitting lid with rubber gaskets or O-rings ensures the seal remains effective under various environmental conditions.

Cable Entry Points

Waterproof junction boxes include multiple cable entry points designed with grommets or threaded knockouts. These points allow cables to pass through while maintaining the integrity of the seal. Some designs feature adjustable cable glands that accommodate different cable diameters, ensuring a snug fit for each wire.

Internal Layout

Inside the box, terminals or connection blocks are strategically placed to keep wiring organized and reduce the risk of short circuits. Some boxes include removable mounting plates, which make it easier to manage complex wiring and perform maintenance without disrupting the entire system.

Material and Durability

Materials are selected to withstand harsh outdoor and industrial environments. High-impact plastics or powder-coated metals resist corrosion, UV exposure, and physical damage. This durability ensures that the junction box maintains protection over long periods, even in challenging conditions.

IP Rating Compliance

Waterproof junction boxes are rated according to the IP (Ingress Protection) standard, which specifies their resistance to solids and liquids. Common ratings like IP65 or IP66 indicate complete protection against dust and high-pressure water jets, making them suitable for outdoor, industrial, and marine applications.

Easy Installation

Designers also focus on installation convenience. Pre-drilled holes and mounting brackets allow for quick and secure attachment to walls or surfaces. Additionally, cable glands are often designed for tool-free adjustments, simplifying the process for electricians.

Maintenance and Inspection

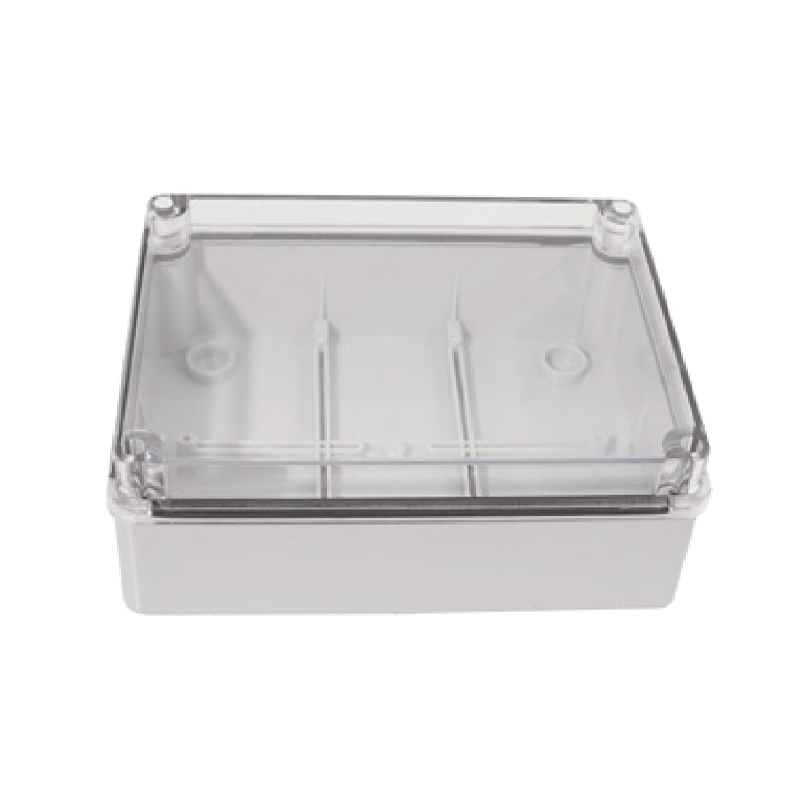

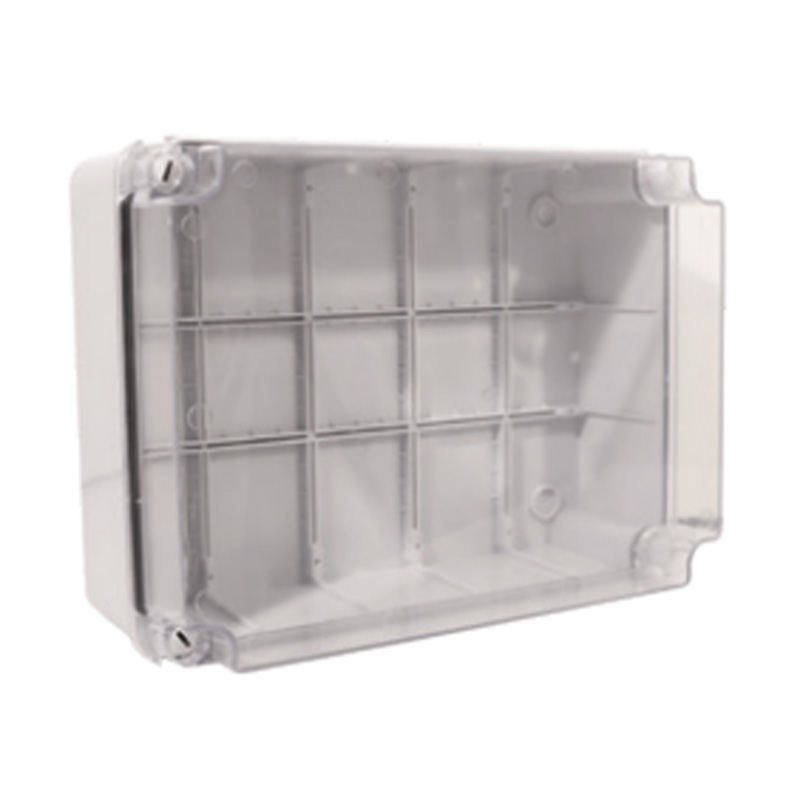

Many waterproof junction boxes feature transparent or removable lids, allowing visual inspection without opening the enclosure fully. This design helps identify issues quickly while exposure to environmental elements.
