Parameters:
Type PET211-415 Description 5pole Rated 400V32A Cross section 0.12-4.0mm2 Length 12mmread moreBrand:

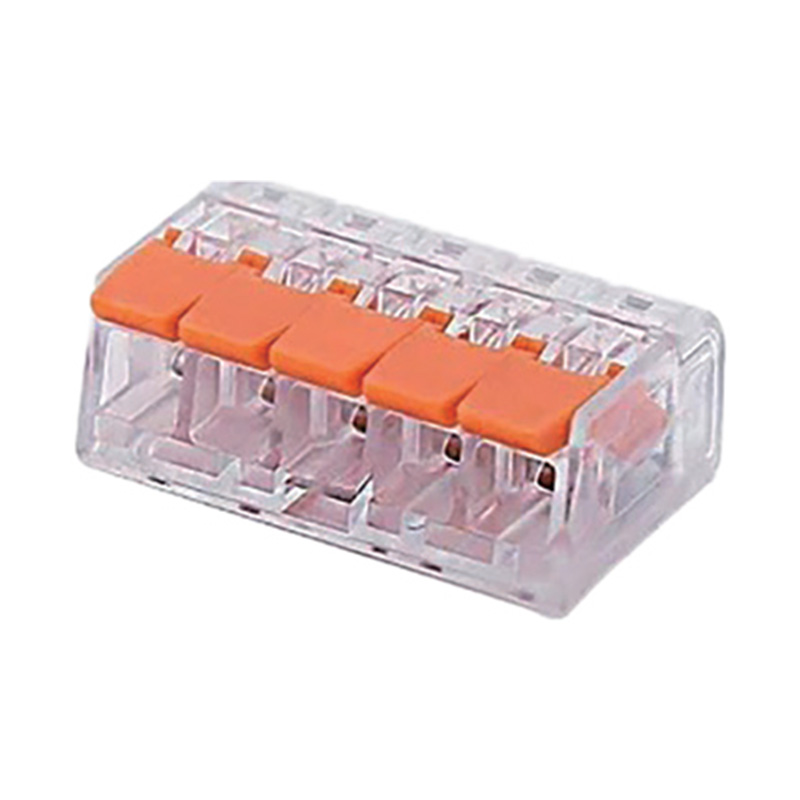

PET211-415
PET211-415
● Product Features: Simply plug the wire into the transparent housing for visual inspection at the test port.
| Type | PET211-415 |
| Description | 5pole |
| Rated | 400V32A |
| Cross section | 0.12-4.0mm2 |
| Length | 12mm |

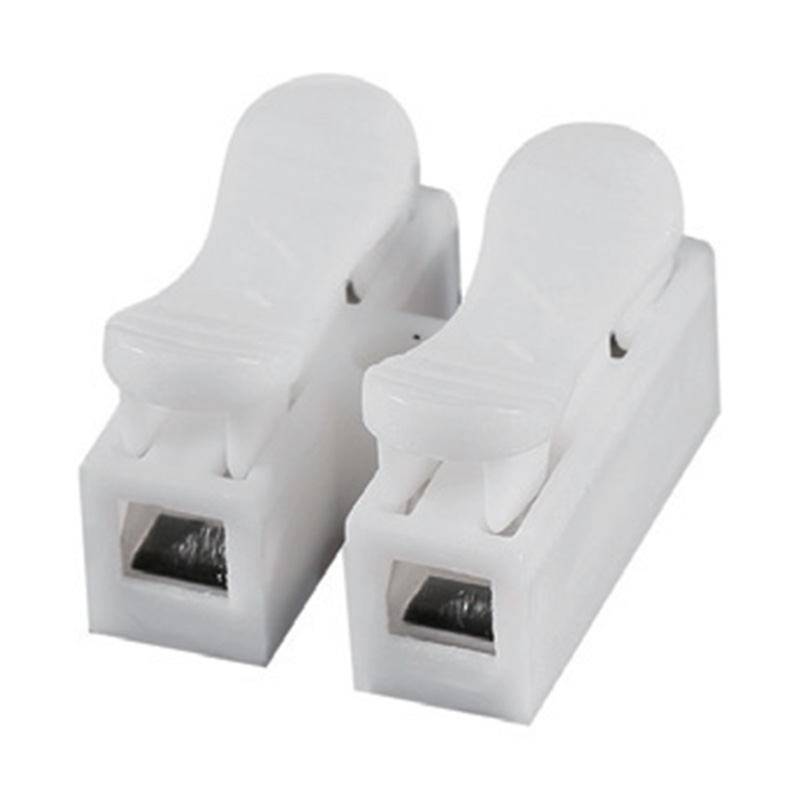

PET-202
● Product Features: Simply plug the wire into the transparent housing for visual inspection at the test port.
| Type | PET-202 |
| Description | 2in4out |
| Rated | 400V32A |
| Cross section | 0.5-2.5mm2 |
| Length | 12mm |
PET-303
● Product Features: Simply plug the wire into the transparent housing for visual inspection at the test port.
| Type | PET-303 |
| Description | 3in3out |
| Rated | 250V5A |
| Cross section | 0.5-2.5mm2 |
| Length | 12mm |

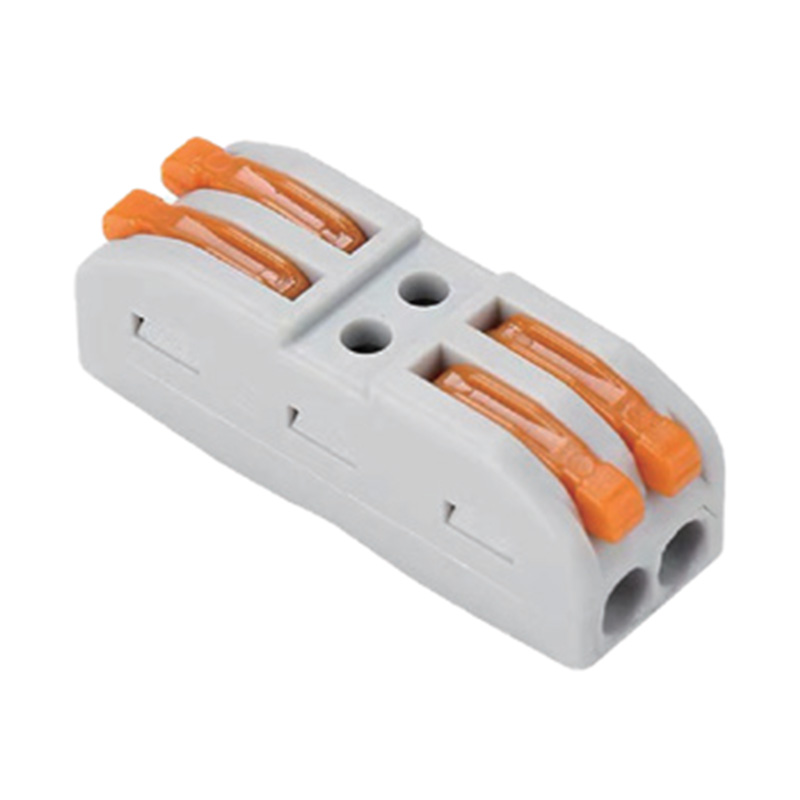

PET-3422
● Product Features: Simply plug the wire into the transparent housing for visual inspection at the test port.
| Type | PET-3422 |
| Description | 2in2out |
| Rated | 400V32A |
| Cross section | 0.08-4.0mm2 |
| Length | 12mm |
PET-3433
● Product Features: Simply plug the wire into the transparent housing for visual inspection at the test port.
| Type | PET-3433 |
| Description | 3in3out |
| Rated | 400V32A |
| Cross section | 0.08-4.0mm2 |
| Length | 12mm |
| item NO. | Spec. | L(MM) | W(MM) | H(MM) | A(MM) | B(MM) | Volt. |
| U type-3A | 4mm2 | 91 | 15.5 | 12.5 | 5.5 | 8 | 380V |
| U type-5A | 5mm2 | 108 | 15.5 | 13.7 | 6.5 | 9 | 380V |
| U type-6A | 6mm2 | 110.5 | 18 | 13.7 | 6.5 | 9.5 | 380V |
| U type-10A | 10mm2 | 129 | 19.5 | 14.8 | 7.5 | 11 | 380V |
| U type-15A | 12mm2 | 129 | 21 | 17.1 | 9 | 11 | 380V |
| U type-20A | 14mm2 | 135 | 22 | 17.2 | 9.5 | 12 | 380V |
| U type-30A | 16mm2 | 163 | 23.8 | 18.2 | 10.5 | 14 | 380V |
| U type-60A | 25mm2 | 192 | 31 | 24.5 | 14 | 16.5 | 380V |
| U-type-80A | 35mm2 | 204 | 36 | 29 | 15.5 | 17.5 | 380V |
| U type-100A | 40mm2 | 229 | 38 | 29.7 | 16.5 | 19.5 | 380V |
| U type-150A | 45mm2 | 256 | 44 | 31.5 | 19.5 | 21.5 | 380V |
| item NO. | Spec. | L(MM) | W(MM) | H(MM) | A(MM) | B(MM) | Volt. |
| H type-3A | 4mm2 | 92 | 15.8 | 12.8 | 5.5 | 8 | 380V |
| H type-6A | 6mm2 | 112.8 | 17.6 | 13.7 | 6.5 | 9.5 | 380V |
| H type-10A | 10mm2 | 129 | 19.7 | 14.5 | 7.5 | 11 | 380V |
| H type-15A | 12mm2 | 133.5 | 22.6 | 18.3 | 9 | 11.5 | 380V |
| H type-20A | 14mm2 | 138 | 22.6 | 18.8 | 9.5 | 12 | 380V |
| H type-30A | 16mm2 | 163 | 23.6 | 20.8 | 10.5 | 14 | 380V |
| H type-60A | 25mm2 | 192 | 30 | 25 | 14 | 16.5 | 380V |
| H type-80A | 35mm2 | 204 | 36.5 | 28.5 | 15.5 | 17.5 | 380V |
| H type-100A | 40mm2 | 230 | 39 | 33 | 16.5 | 19.5 | 380V |
| H type-150A | 45mm2 | 256 | 43.2 | 35.5 | 19.5 | 21.5 | 380V |
| item NO. | Cable size (mm) | Dimension (mm) | Colour | ||||
| A.W.G | mm2 | I | Dφ | L | lmax | ||
| BV1.25 | 22-16 | 0.5~1.5 | 15 | 1.7 | 26 | 19A | red |
| BV2 | 16~14 | 1.5~2.5 | 15 | 2.3 | 26 | 27A | Blue |
| BV5.5 | 12~10 | 4~6 | 15 | 3.4 | 26 | 48A | Yellow |
| BV8 | #8 | 6~10 | 21 | 4.5 | 32 | 62A | Red |
| BV14 | #6 | 10~16 | 26 | 5.8 | 42 | 88A | Blue |
| BV22 | #4 | 16~25 | 29 | 7.7 | 50 | 115A | Yellow |
| BV38 | #2 | 35~50 | 32 | 9.4 | 55 | 160A | Red |
| PVT1.25 | 22~16 | 0.5~1.5 | 8 | 1.7 | 16 | 19A | Red. |
| PVT2 | 16~14 | 15~25 | 8 | 2.3 | 16 | 27A | Red |
| PVT5.5 | 12~10 | 4~6 | 8.5 | 3.4 | 20.5 | 48A | Yellow |
| Product Specification | φ(mm) | Dφ(mm) | dφ(mm) | L(mm) |
| JG-10 | 6.2 | 8 | 5 | 37.5 |
| JG-16 | 8.4 | 9 | 6 | 40.5 |
| JG-25 | 8.4 | 10 | 7 | 45.5 |
| JG-35 | 8.5 | 11 | 8 | 51.5 |
| JG-50 | 8.5 | 13 | 10 | 54 |
| JG-70 | 10.5 | 16 | 12 | 60 |
| JG-95 | 10.5 | 18 | 14 | 65 |
| JG-120 | 12.5 | 19 | 15 | 72.5 |
| JG-150 | 12.5 | 22 | 17 | 77 |
| JG-185 | 14.5 | 24 | 19 | 86 |
| JG-240 | 16.5 | 26 | 21 | 93.5 |
| JG-300 | 16.5 | 31 | 24 | 101 |
| JG-400 | 18.5 | 34 | 26 | 113.5 |
| JG-500 | 20.5 | 38 | 30 | 123.5 |
| JG-630 | 22.5 | 45 | 35 | 135 |
| JG-800 | 22.5 | 50 | 40 | 170 |
DR-8500
● Application: suitable for insaling all nIN ctandard automatic control components.
● Material: radiant plated steel or Aluminum.
● Length: 1 meter ,2 meters, other length is also avaible.
DR-7600
● Application: suitable for insaling all nIN ctandard automatic control components.
● Material: radiant plated steel or Aluminum.
● Length: 1 meter ,2 meters, other length is also avaible.
DR-8700
● Application: suitable for insaling all nIN ctandard automatic control components.
● Material: radiant plated steel or Aluminum.
● Length: 1 meter ,2 meters, other length is also avaible.
