Terminal Insulation Protective Sleeve
● Product material: High-grade soft PVC.
● Application: Suitable for all kinds of switchboard, mechanical complex wiring color separation processing, so that the line can be at a glance. Soft elasticity makes it suitable for terminals of various shapes and easy to use.
● Product features: clear color, bright, good elasticity, good insulation.
● Product color: red, blue, yellow, black, white, green six kinds.
| Models | Applicable cable (mm) | Packing quantity PCS |
Colour |
| PET-V-1.52 | 1.25 | 2000 | R,B，Y,BK,W,GN |
| PET-V-22 | 2.5 | 2000 | |
| PET-V-42 | 3.5 | 1000 | |
| PET-V-62 | 5.5 | 1000 | |
| PET-V-102 | 8 | 1000 | |
| PET-V-162 | 14 | 1000 | |
| PET-V-252 | 22 | 500 | |
| PET-V-352 | 38 | 500 | |
| PET-V-602 | 50 | 200 | |
| PET-V-802 | 70 | 100 | |
| PET-V-1002 | 90 | 100 | |
| PET-V-1202 | 125 | 50 | |
| PET-V-1502 | 150 | 50 | |
| PET-V-1852 | 200 | 50 | |
| PET-V-2402 | 250 | 50 | |
| PET-V-3002 | 325 | 25 | |
| PET-V-4002 | 400 | 20 | |
| PET-V-5002 | 500 | 20 | |
| PET-V-6302 | 630 | 20 |

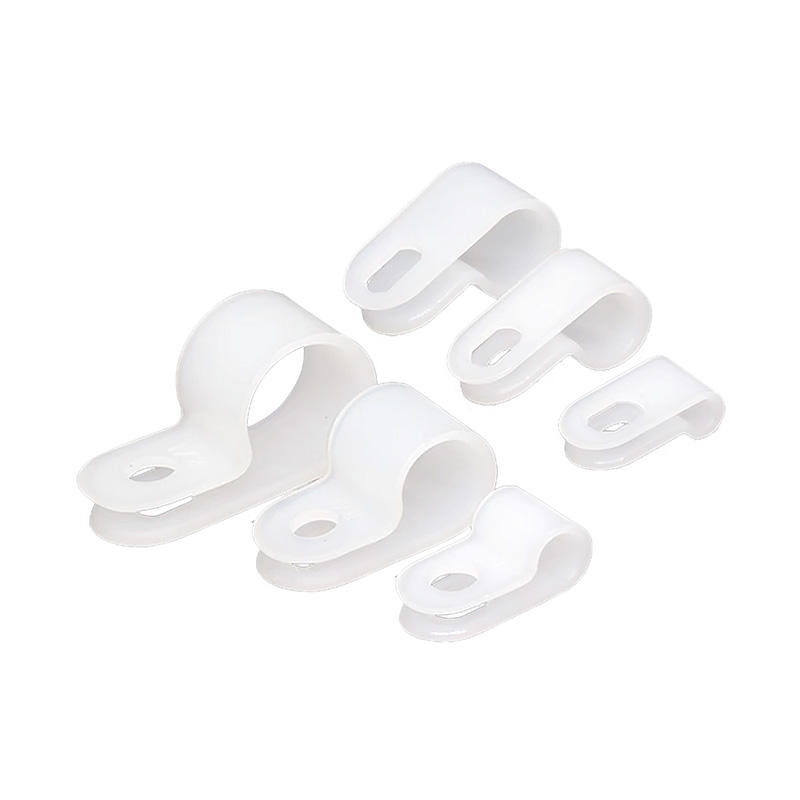

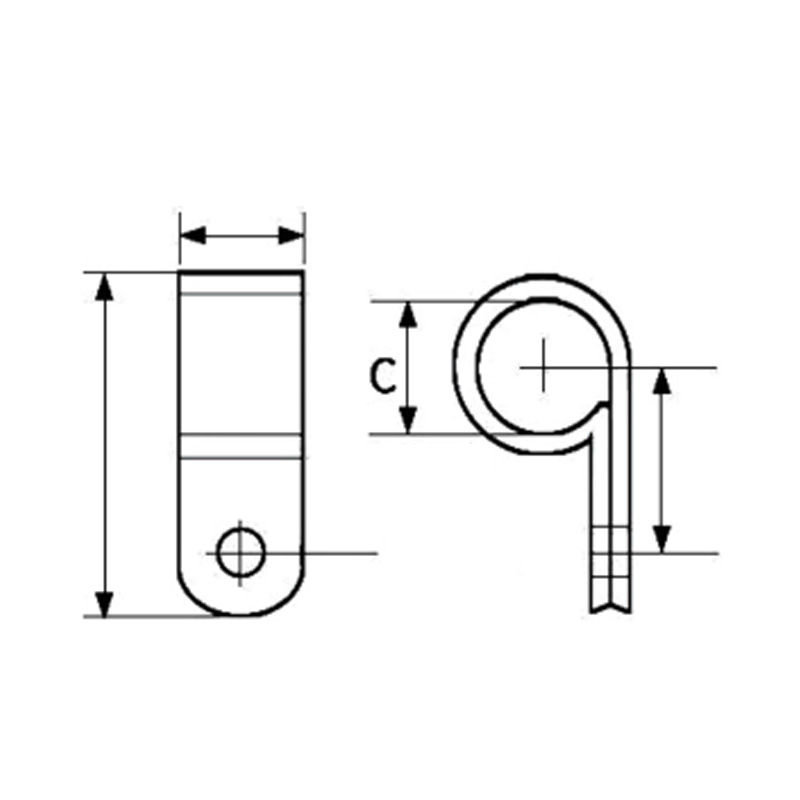

R-Shaped Clamp
● Product material: PE(polyethylene), PA6(mnylon), PP.
● Function: The expansion pipe is used with screws to fix hanging or hanging items.
● Application: Used for concrete, building wall brick, and dense natural stone.
● Product color: The products are white, beige, milk white, gray, and dark gray.
● Product features: Plastic expansion tube can prevent itself from sliding in the wall hole, PE raw material expansion tube has good elasticity, strong hardness, and no rust, corrosion, or aging resistance.
| Models | Pitch of holes (mm) |
breadth (mm) |
Maximum wire diameter (mm) |
Contour length (mm) |
Mounting hole (mm) |
Packing quantity PCS |
| PET-R3.3 | 9.5 | 9 | 3.3 | 17 | 4 | 1000 |
| PET-R5.2 | 10.5 | 9.6 | 5.5 | 18.5 | 4 | 1000 |
| PET-R6.4 | 12 | 9.6 | 6.35 | 21 | 4 | 1000 |
| PET-R8.4 | 12.5 | 9.6 | 8.35 | 22.8 | 4 | 1000 |
| PET-R10.4 | 13.5 | 9.6 | 10.35 | 23.8 | 4 | 1000 |
| PET-R13.2 | 13.5 | 9.6 | 12.7 | 25.8 | 4 | 1000 |
| PET-R16.2 | 16.5 | 9.6 | 15.8 | 30.5 | 4 | 1000 |
| PET-R19.2 | 17 | 12 | 19 | 35.5 | 4.5 | 500 |
| PET-R25 | 26 | 13 | 25 | 44 | 5 | 200 |
| PET-R30 | 23 | 12.7 | 30 | 47 | 5 | 200 |
| PET-R50 | 41 | 12.5 | 50 | 77 | 5 | 100 |

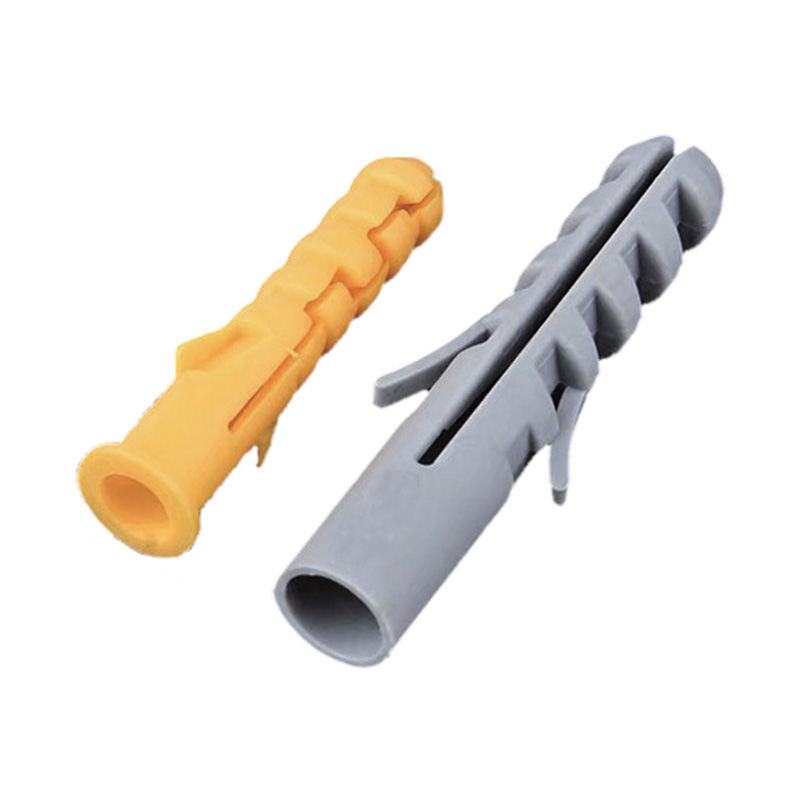

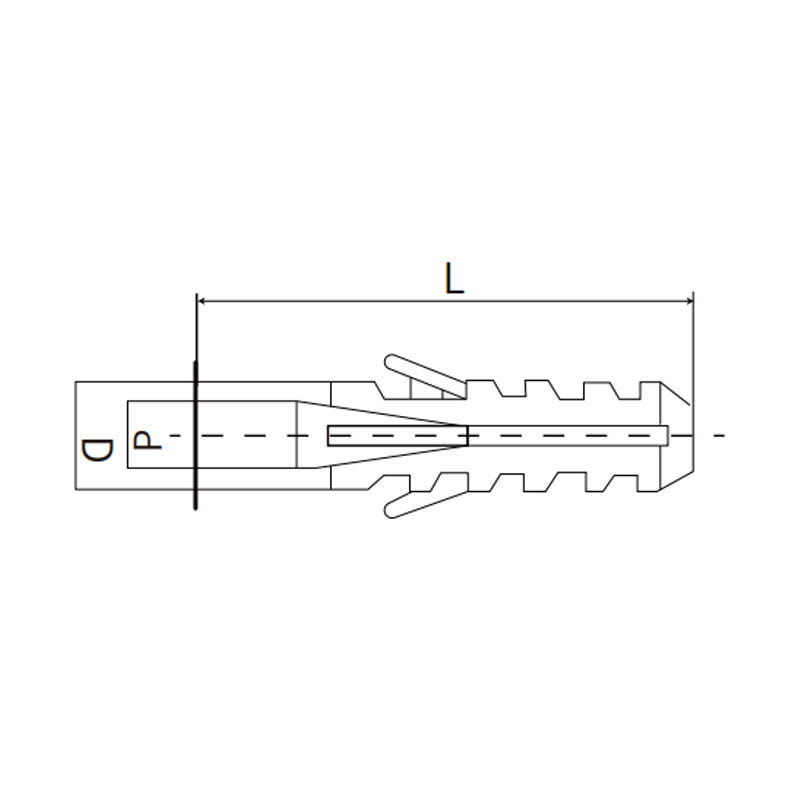

Expansion Tube
● Product material: PE(polyethylene), PA6(nylon),PP.
● Function: The expansion pipe is used with screws to fix hanging or hanging items.
● Application: Used for concrete, building wall brick, and dense natural stone.
● Product color. The products are white, beige, milk white, gray, and dark gray.
● Product features: Plastic expansion tube can prevent itself from sliding in the wall hole, PE raw material expansion tube has good elasticity, strong hardness, and no rust, corrosion, or aging resistance.
| Models | d | D | TL | Packing quantity (mm) |
| (mm) | (mm) | (mm) | ||
| PET-DO5 | 3.4 | 5 | 26 | 100PCS&1000Pcs |
| PET-D06 | 4.6 | 6 | 29 | |
| PET-D08 | 5 | 7.8 | 38.1 | |
| PET-D10 | 5.8 | 9.9 | 39 | 100PCs&500PCs |
| PET-D12 | 6.6 | 10.1 | 48 |

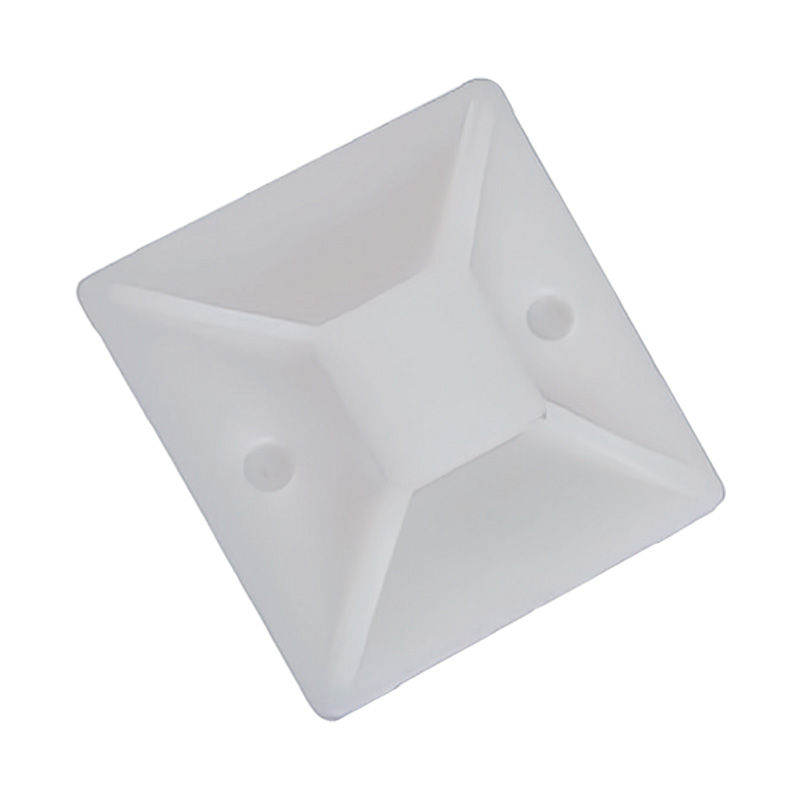

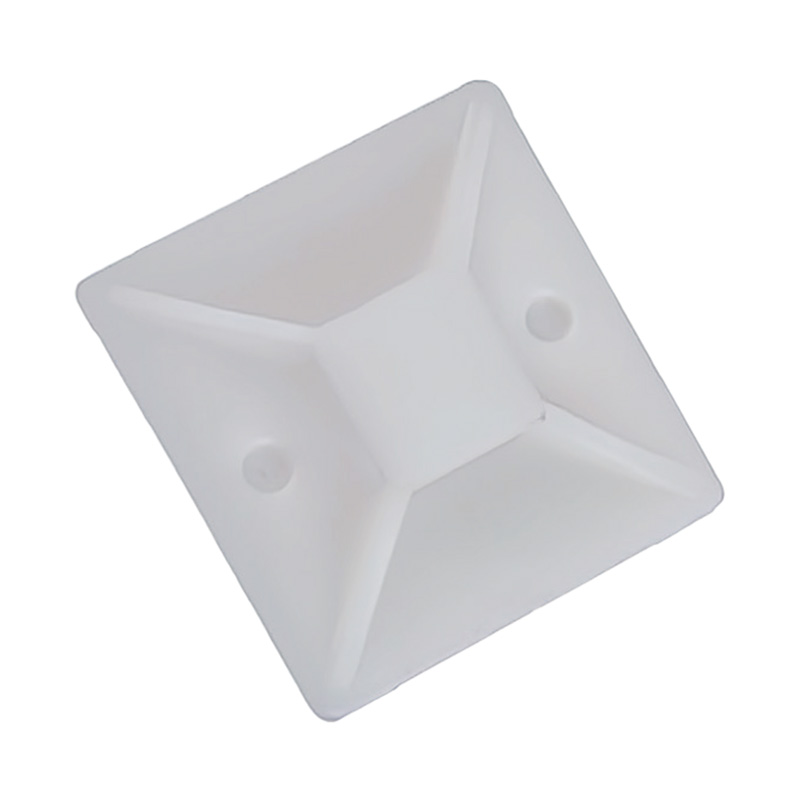

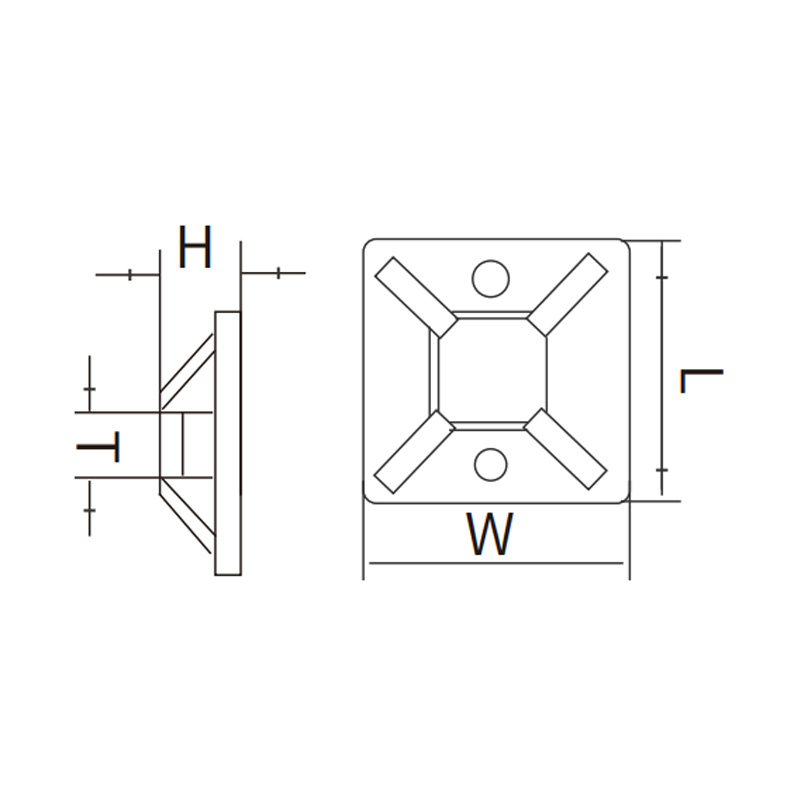

Self-Adhesive Positioning Plate
● Product Material: UL-approved Nylon PA66, firerating 94V-2.
● Product features: Good insulation, durability, antiaging, panel does not require drilling
● Application: Paste on a clean, smooth, grease-free surface
● Product features: Tear the positioning sponge, stick to the machine board fixed, and then tie the wire with cable ties
| item NO. | Length * Width (mm) |
H | T | Screw hole (mm) |
Packing quantity PCS |
| (mm) | (mm) | ||||
| PET-XP20 | 20*20 | 6.1 | 5 | 2.9 | 100PCS&1000PCs |
| PET-XP25 | 25*25 | 7.5 | 6.2 | 3.5 | |
| PET-XP30 | 30*30 | 8.7 | 6.4 | 4.5 | |
| PET-XP40 | 40*40 | 6.4 | 10.8 | / |

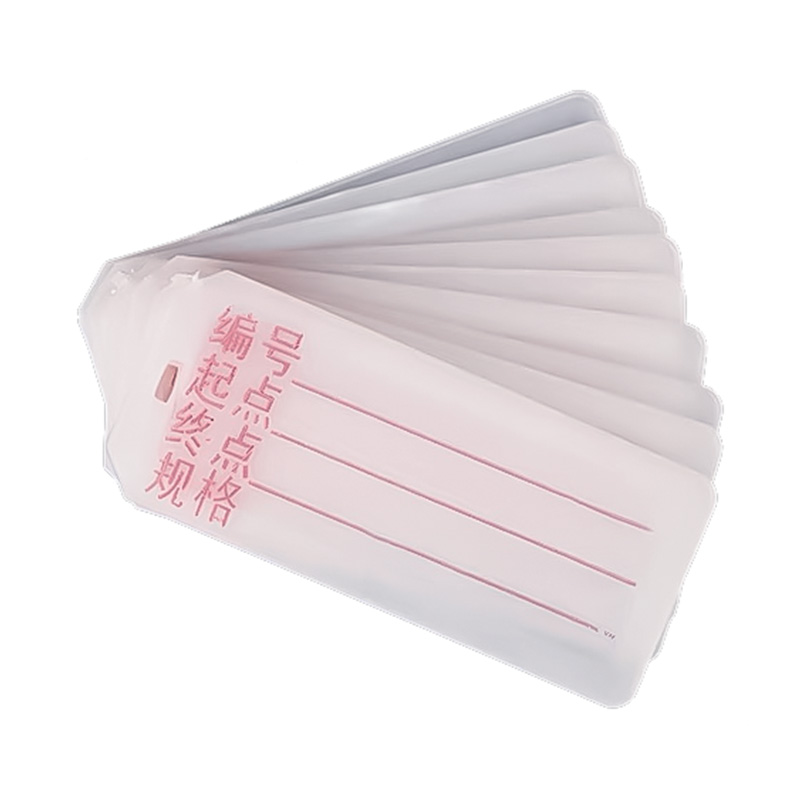

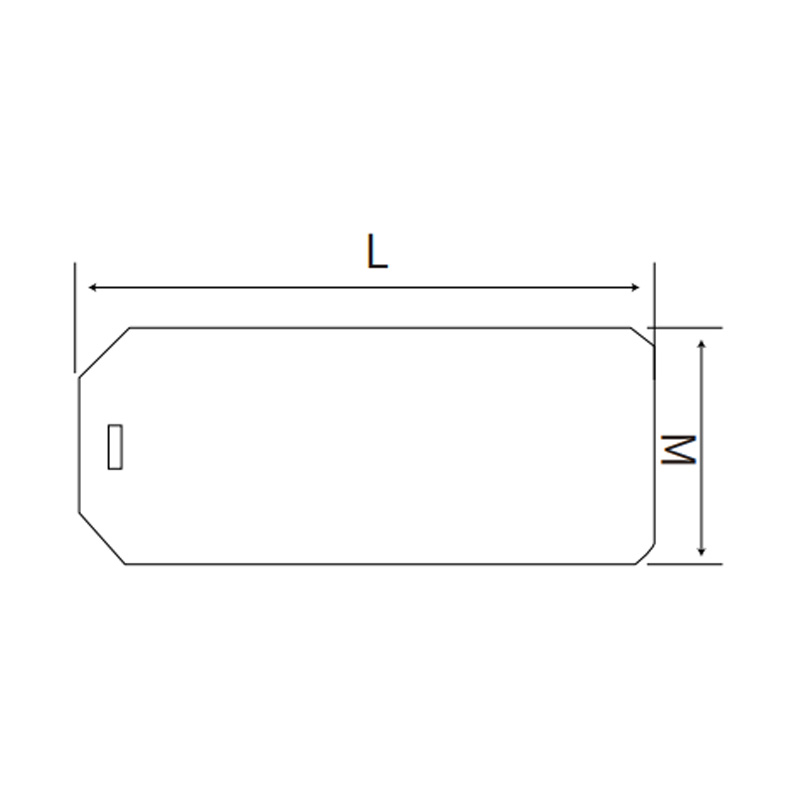

Cable Plate
● Product material: Made of high-quality PVC, can prevent oiliness and other substances erosion.
| Models | Product specification | Wire Diameter Range (mm) |
M (mm) |
Packing quantity PCS |
| Cable plate (computer printed sign) | Square | 72 | 32.5 | 500 |
| Circular type | 76 | 29 | 500 |
