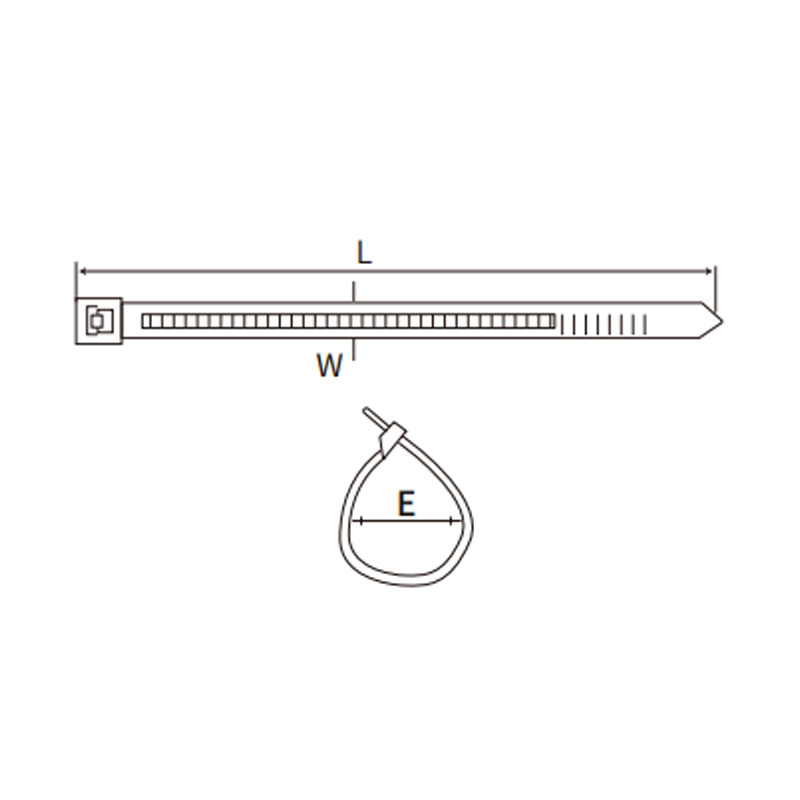

Nylon Cable Tie

Nylon Cable Tie

● Product Material: UL-approved nylon PA66
● Sealing material: acid resistance, corrosion resistance, good tensile strength, anti-aging Operating temperature: -40°C to 100°C
● Product color: black, gray, special colors (white, red, blue, dark gray) can be customized

Contact Us Return
  • Nylon Cable Tie
Models TL Wide Range of cable ties(mm) Tension Packing quantity
PCS
INCH (mm) (mm) LBA KGS
PET-3*60 2 3/8" 60 2.5 2-11 18 8 100PCS&1000PCS
PET-3*80 3 1/7" 80 2.5 2-16 18 8
PET-3*100 3 8/9" 100 2.5 2-22 18 8
PET-3*120 4 5/7" 120 2.5 2-30 18 8
PET-3*150 5 8/9" 150 2.5 2-35 18 8
PET-3*200 7 7/8" 200 2.5 3-50 18 8 100PC&500PCS
PET-4*150 5 8/9" 150 3.5 3-35 40 18
PET-4*180 7 1/9" 180 3.5 3-42 40 18
PET-4*200 7 7/8" 200 3.5 3-50 40 18 100PC&250PCS
PET-4*250 9 5/6" 250 3.5 3-65 40 18
PET-4*280 11" 280 3.5 3-70 40 18
PET-4*300 11 4/5" 300 3.5 3-80 40 18 100PC&500PCS
PET-4*370 14 4/7" 370 3.5 3-102 40 18
PET-5*120 4 5/7" 120 4.8 3-24 50 22
PET-5*180 7 1/9" 180 4.8 3-42 50 22 100PCS&250PCS
PET-5*200 7 7/8" 200 4.8 3-50 50 22
PET-5*250 9 5/6" 250 4.8 3-65 50 22
PET-5*300 11 4/5" 300 4.8 3-82 50 22
PET-5*350 13 7/9" 350 4.8 3-90 50 22
PET-5*380 15" 380 4.8 3-102 50 22
PET-5*400 15 3/4" 400 4.8 3-105 50 22
PET-5*450 17 5/7" 450 4.8 3-130 50 22
PET-5*500 19 2/3" 500 4.8 3-150 50 22
PET-8*150 5 8/9" 150 7.9 3-33 120 55
PET-8*180 7 1/9" 180 7.9 3-42 120 55
PET-8*200 7 7/8" 200 7.9 3-50 120 55
PET-8*250 9 5/6" 250 7.9 4-63 120 55
PET-8*300 11 4/5" 300 7.9 4-82 120 55
PET-8*350 13 7/9" 350 7.9 4-90 120 55
PET-8*400 15 3/4" 400 7.9 4-105 120 55
PET-8*450 17 5/7" 450 7.9 4-118 120 55
PET-8*500 19 2/3" 500 7.9 4-150 120 55 100PCS
PET-9*500 19 2/3" 500 9 8-145 175 80
PET-9*550 21 2/3" 550 9 8-160 175 80
PET-9*600 23 5/8" 600 9 8-170 175 80
PET-9*650 25 3/5" 650 9 8-190 175 80
PET-9*760 29 8/9" 760 9 10-225 175 80
PET-9*920 36 2/9" 920 9 10-265 175 80
PET-9*1020 40 1/6" 1020 9 10-295 175 80
PET-10*450 17 5/7" 450 10 10-125 200 91
PET-10*500 19 2/3" 500 10 12-150 200 91
PET-10*650 25 3/5" 650 12 14-190 250 114
PET-10*750 29 1/2" 750 12 14-190 250 114

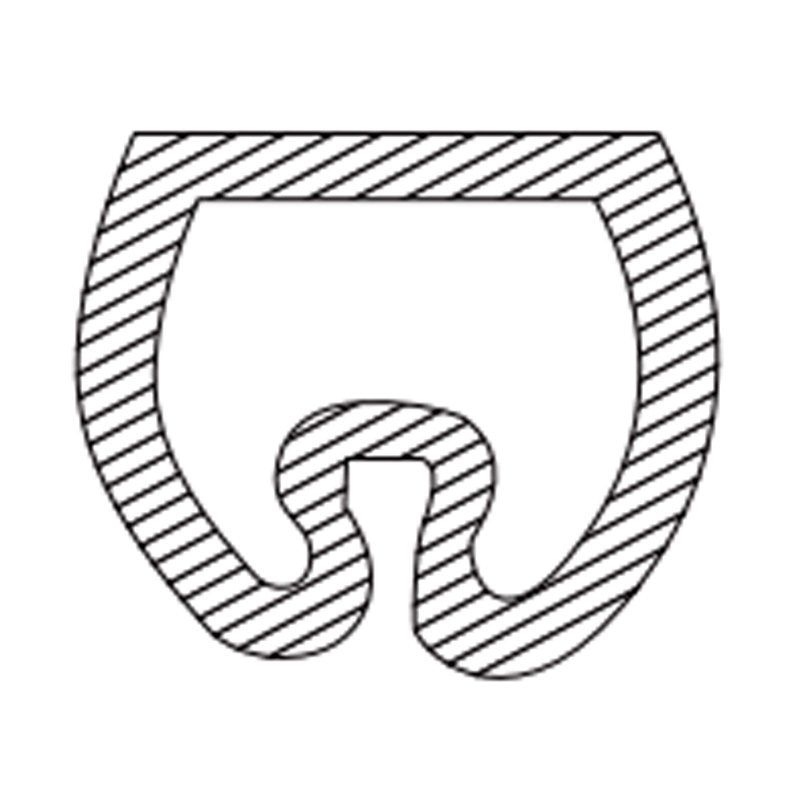

Shaped Tube A

Shaped Tube A

● Material: Made of high-quality PVC, can prevent oiliness and other substances erosion, temperature resistance to 85°C
● Product structure: Concave inside-shaped tube, with elasticity. The inner diameter can be expanded and expanded with the size of the wire.
● Cable specifications: 0.5mm2 to 120mm2
● Product use: line mark

Contact Us Return
  • Shaped Tube A
Models Adapter wire Weight/roll (kg) Length (m)
PET-0.52 0.52-0.752 1 42
PET-0.752 0.752-12 1 35
PET-12 12-1.52 1 30.9
PET-1.52 1.52-2.52 1 21.5
PET-2.52 2.52-42 1 19.5
PET-42 4-62 1 17.2
PET-62 62 1 12.5
PET-102 102 1 9.3
PET-162 162 1
PET-252 252 1
PET-352 352 1

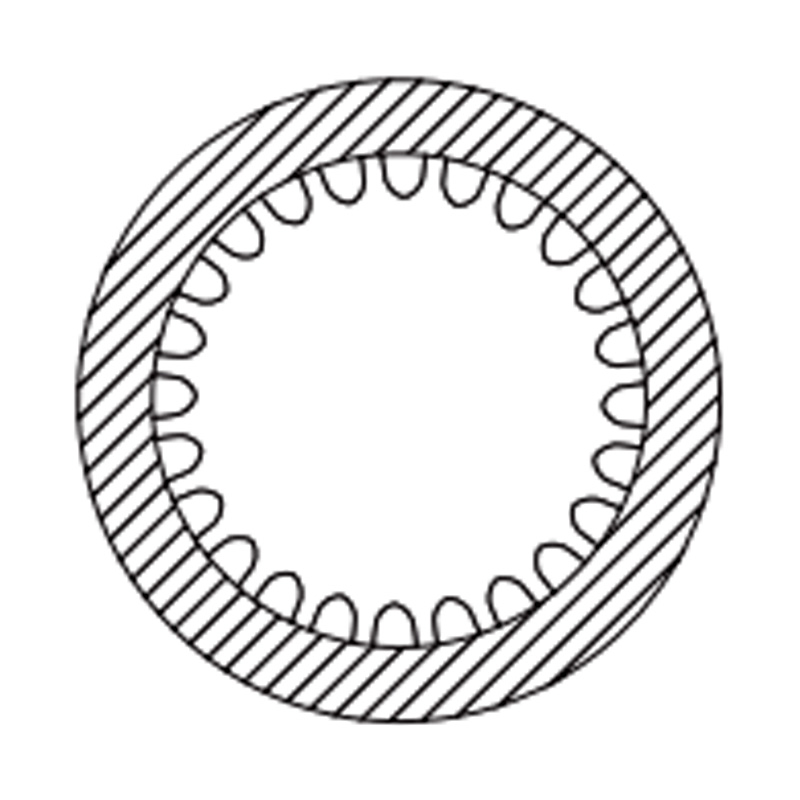

QUILL B

QUILL B

● Material: Made of high-quality PVC, can prevent oiliness and other substances erosion, temperature resistance to 85°C
● Product structure: Concave inside-shaped tube, with elasticity. The inner diameter can be expanded and expanded with the size of the wire.
● Cable specifications: 0.5mm2 to 120mm2
● Product use: line mark

Contact Us Return
  • QUILL B
Models Adapter wire Weight/roll (kg) Length (m)
PET-φ1.5 0.52 1.8 135
PET-φ2 0.752 1.8 120
PET-φ2.5 12 1.8 105
PET-φ3 1.52 1.8 90
PET-φ3.5 2.52 1.8 80
PET-φ4 42 1.8 70
PET-φ4.5 52 1.8 50
PET-φ5 62 1.8 40
PET-φ6 102 1.8 30
PET-φ8 162 1.8 25
PET-φ10 252 1.8 15

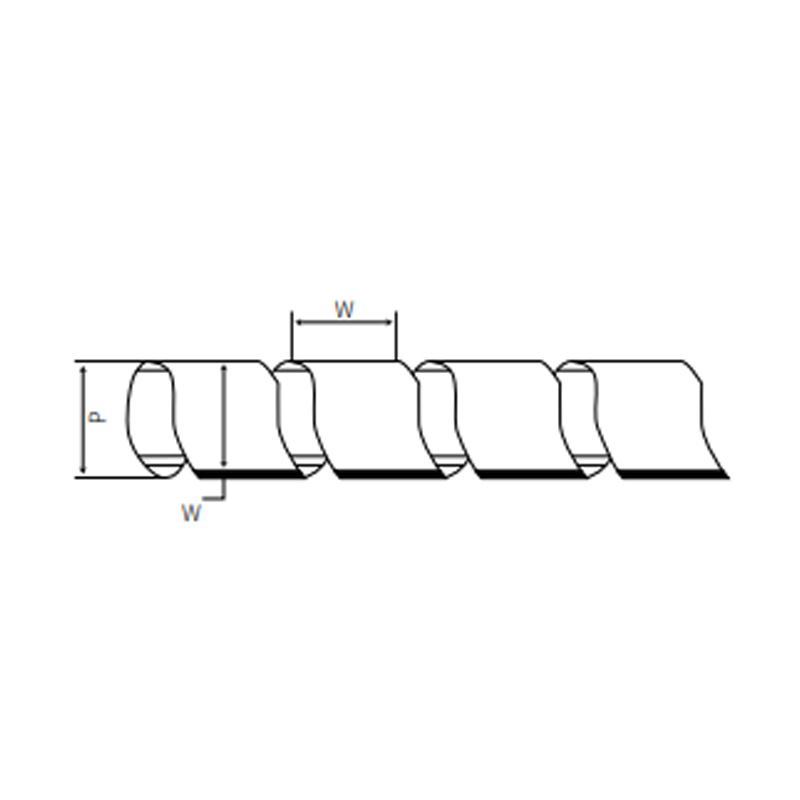

Coil end protection tape（winding tube）

Coil end protection tape（winding tube）

● Material: PE/PA
● Usage: Fix one end of the starting point with a protective belt, and then wrap it around in a clockwise direction to integrate the wiring harness into one.
● Product use: Protect the wire from wear and insulation, making the wire look more beautiful.

Contact Us Return
  • Coil end protection tape（winding tube）
Models Inside diameter
(mm)		 Outside diameter
(mm)		 Screw pitch
(mm)		 Trapping range
(mm)		 Length
(mm)		 Packing quantity
(mm)
PET-03 2 3 5 2-20 55 0.5KG
PET-04 2 4 5 3-30 50
PET-05 3 5 6 3-40 45
PET-06 4 6 7 4-45 45
PET-08 6 8 10.8 6-60 35
PET-10 7.5 10 11.4 7.5-60 23
PET-12 9 12 13.9 9-65 17
PET-14 11.5 14 14 10-70 13
PET-16 13.5 16 15 12-75 10
PET-18 15 18 18.2 14-85 8
PET-20 17.5 20 18.5 15-100 7
PET-22 19.5 22 20 20-130 6.5
PET-25 22.5 25 20 22-135 6
PET-30 27 30 20 27-150 5

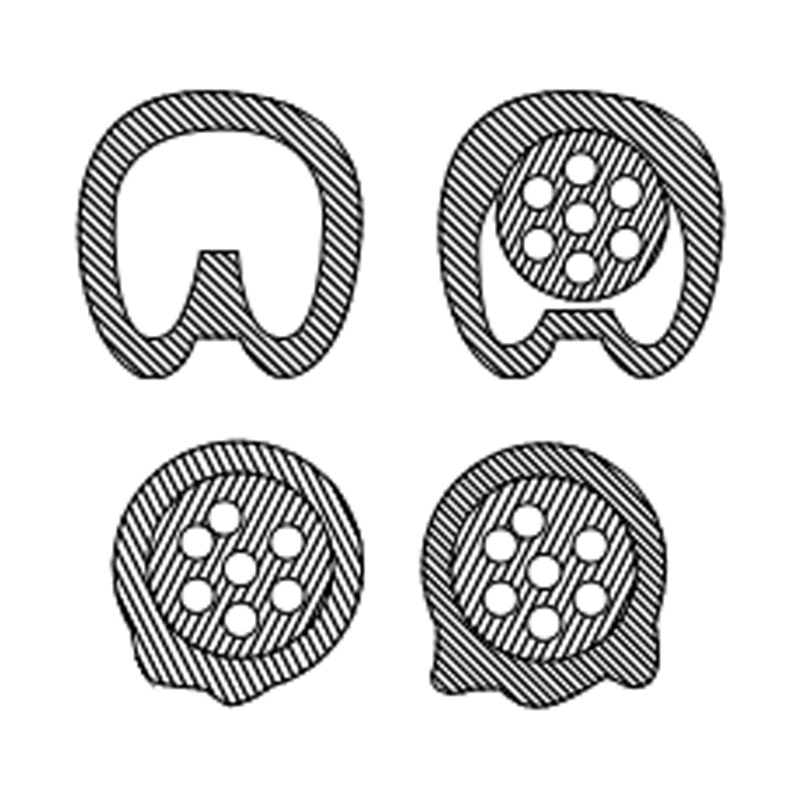

Flat number tube

Flat number tube

● Product material: Made of high quality PVC, can prevent oiliness and other substances erosion.

Contact Us Return
  • Flat number tube
Models Line diameter range
(mm)		 number Packing quantity
PCS
PET-EC-0 2.0~3.2 0、1、2、3...9 1000PCS/Poll
PET-EC-1 3.0~4.2 A、B、C.....Z 1000PCS/Po11
PET-EC-2 3.6~7.4 +、-、/、\ 500PCS/Po1l
PET-EC-3 5.2~10 250PCS/Po11

Soft Heat Shrinkable Tube

● Material: Made of polyolefin material.
● Temperature resistance: 125°C.
● Pressure resistance: 600V.
● Usage: High quality, very soft, with high flame retardant properties and excellent physical, chemical, and electronic properties. Products are widely used in military and commercial fields, such as electronic insulation, components,  and Protection of terminals and joints. In addition, it is often used for color identification of wiring applications and electronic components of wire and cable.
● Color: Red, blue, yellow, black, white, green, yellow and greens even.

Contact Us Return
  • Soft Heat Shrinkable Tube
Models Outside diameter
(mm)		 Inside diameter
(mm)		 Wall thic kness
(mm)		 Packing quantity
(mm)
PET-1.0 1 0.65 0.28士0.10 200
PET-1.5 1.5 0.85 0.32士0.10 200
PET-2.0 2 1 0.40土0.10 200
PET-2.5 2.5 1.3 0.40土0.10 200
PET-3.0 3 1.5 0.40士0.10 200
PET-3.5 3.5 1.8 0.42土0.10 200
PET-4.0 4 2 0.45士0.10 200
PET-5.0 5 2.5 0.55士0.10 100
PET-6.0 6 3 0.55士0.10 100
PET-7.0 7 3.5 0.55土0.10 100
PET-8.0 8 4 0.60士0.10 100
PET-10 10 5 0.60土0.10 100
PET-12 12 6 0.65士0.10 100
PET-13 13 6.5 0.65士0.10 100
PET-14 14 7 0.70士0.10 100
PET-15 15 7.5 0.75土0.10 100
PET-16 16 8 0.75士0.10 100
PET-18 18 9 0.80士0.10 100
PET-20 20 10 0.82士0.10 100
PET-22 22 11 0.82士0.10 100
PET-25 25 12.5 1.00土0.10 50
PET-28 28 14 1.00土0.10 50
PET-30 30 15 1.05土0.10 50
PET-35 35 17.5 1.15土0.10 50
PET-40 40 20 1.20土0.10 50
PET-50 50 25 1.20士0.10 25
PET-60 60 30 1.50士0.10 25
PET-70 70 35 1.60土0.10 25
PET-80 80 40 1.70士0.10 25
PET-90 90 45 1.90士0.10 25
PET-100 100 50 2.10士0.10 25

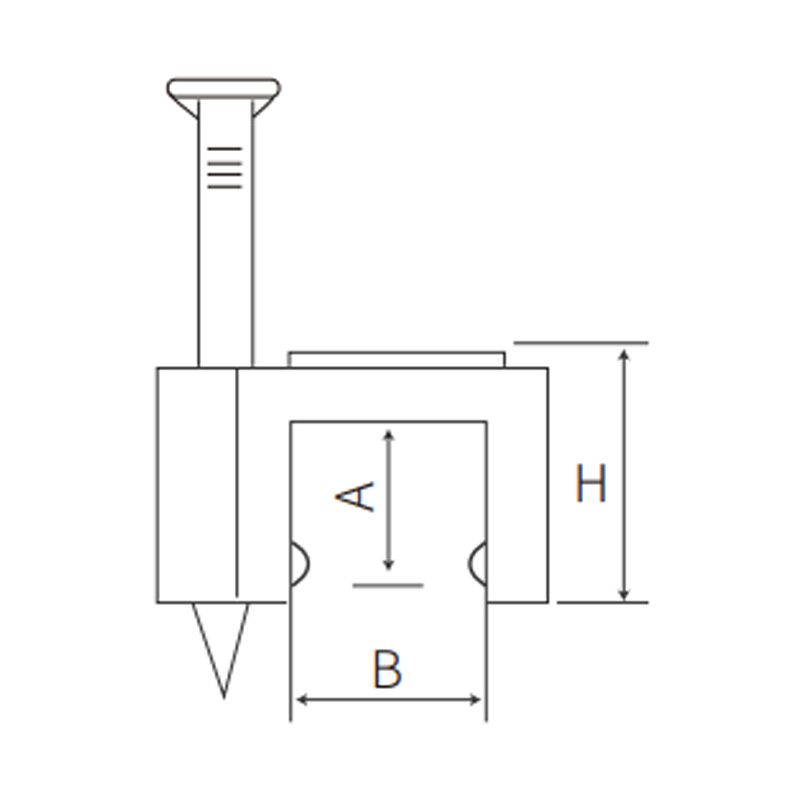

Square Steel Nail Card

Square Steel Nail Card

● Product Material: UL approved Nylon PA66, fire rating 94V-2.
● Product features: Good insulation, durability, anti-aging, panel does not require drilling.
● Application: Paste on a clean, smooth, grease-free surface
● Product features: Tear the positioning sponge, stick to the machine board fixed, and then tie the wire with cable ties

Contact Us Return
  • Square Steel Nail Card
Models H Inside diameter (mm) Steel nail
(mm)		 Packing quantity
PCS
(mm) A B
PET-B4mm 6 3.8 4 1.7*15 100PCS&100OPCS
PET-B5mm 6 3.8 5 1.7*15
PET-B6mm 6.5 4.1 6 1.7*17
PET-B7mm 7 4.7 7 1.9*18
PET-B8mm 7.5 5 8 2.05*19
PET-B9mm 8.2 5.4 9 2.05*22
PET-B10mm 8.6 5.7 10 2.32*23
PET-B12mm 9 6.1 12 2.32*25
PET-B14mm 11 8 14 2.32*25
PET-B16mm 13 10 16 2.32*25
Round Steel Nail Card

Round Steel Nail Card

● Product Material: UL approved Nylon PA66, fire rating 94V-2.
● Product features: Good insulation, durability, anti-aging, panel does not require drilling.
● Application: Paste on a clean, smooth, grease-free surface
● Product features: Tear the positioning sponge, stick it to the machine board fixed, and then tie the wire with cable ties

Contact Us Return
  • Round Steel Nail Card
Models H D Steel nail
(mm)		 Packing quantity
(mm)
(mm) (mm)
PET-D3mm 4.5 3.5 1.47*14 100PCS&1000PCS
PET-D4mm 6.4 4.5 1.7*15
PET-D5mm 6.4 4.5 1.7*15
PET-D6mm 7.2 6 1.7*16
PET-D7mm 8.2 7 1.7*17
PET-D8mm 9.4 8 2.0*19
PET-D9mm 10.4 9 2.0*20
PET-D10mm 11.4 10 2.0*23
PET-D12mm 13.4 12 2.0*25
PET-D14mm 16.4 14 2.35*30
PET-D16mm 19.4 16 2.35*32
PET-D18mm 20.2 18 2.6*38
PET-D20mm 22.2 20 2.7*38
PET-D22mm 22.2 22 2.8*41
PET-D25mm 28 25 2.8*45
PET-D30mm 33.1 30 3.0*48
PET-D32mm 35 32 3.2*55
PET-D35mm 39 35 3.3*60
PET-D40mm 43.3 40 3.3*65
PET-D50mm 54 50 4.0*81
Screw Cap

Screw Cap

● Product material: UI-approved nylon 66, fire rating 94-20
● Usage: Peel off the outer skin of the end of the wire insert it into the casing, and press it tightly with wire crimping pliers.
● Product features: the shell is nylon injection molding, the internal copper tube is long, the increase of wire crimping range makes it easier to conduct electricity, and more able to clamp the wire, even if the strong vibration does not fall off.

Contact Us Return
  • Screw Cap
Models H V D Applicable cable Packing quantity
(mm)
(mm) (mm) (mm)
PET-P71 15 8.7 6.5 MIN#20*1+#22*1 MA#16*2 10OPCS
&
1000PCS
PET-P72 18 10 7.5 MIN#20*3 MA#16*3
PET-P73 23 11.2 9.5 MIN#20*3 MA#16*3+#18*1
PET-P74 24 13.6 10.8 MIN#14*1+#18*1 MIN#14*1+#18*1
PET-P75 27.8 16.1 12.7 MIN#18*2 MA#12*3
PET-P1 22 19 9.8 MIN#18*2 MA#12*3
PET-P2 29 22 12.5 MIN#14*2 MA#10*4
PET-P3 33.2 27 14 MIN#12*3 MA#10*4
PET-P4 39.6 30.5 17.5 MIN#12*3 MA#6-1+#8*2
Safety Crimping Cap

Safety Crimping Cap

● Product material: UI-approved nylon 66, fire rating 94-20
● Usage: Peel off the outer skin of the end of the wire insert it into the casing, and press it tightly with wire crimping pliers.
● Product features: the shell is nylon injection molding, the internal copper tube is long, the increase of wire crimping range makes it easier to conduct electricity, and more able to clamp the wire, even if the strong vibration does not fall off.

Contact Us Return
  • Safety Crimping Cap
Models H wide (mm) D Applicable cable Packing quantity
PCS
(mm) B C (mm) mm2 AWG
PET-φ3 17.8 7.2 5.5 2.5 1.3 22-16 100PCS
&
1000PCS
PET-φ4 21 8.2 5.8 29 2 16-14
PET-φ5 22.5 9 6.7 3.9 5.5 12-10
PET-φ6 25.2 10 7.8 4.5 8 8
PET-φ7 24.2 11 9.4 5.4 10 8-6
PET-φ8 25.6 11.8 10.2 6 13 6
PET-φ10 29.5 13.5 9.3 7.5 16 4 100/500PCS
Blue-Grey Insulated Distribution Trough

Blue-Grey Insulated Distribution Trough

● Material: SouthAsia rigid PVC(gray), good insulation, no spontaneous combustion, temperature resistance to 85°C.
● Product structure: composed of groove bottom and groove cover two parts, both sides of the bottom groove provided with line holes.

Contact Us Return
  • Blue-Grey Insulated Distribution Trough
Models(H*W)PXC3- Packing quantity
PCS		 TL
(mm)
PET-20*15 200 2M
PET-20*20 200
PET-20*25 200
PET-20*30 200
PET-25*25 200
PET-30*15 200
PET-30*20 200
PET-30*25 100
PET-30*30 100
PET-30*35 100
PET-30*40 100
PET-30*45 100
PET-30*50 100
PET-35*25 100
PET-35*30 100
PET-35*35 100
PET-35*40 100
PET-40*25 100
PET-40*30 100
PET-40*35 100
PET-40*40 100
PET-40*45 100
PET-45*25 100
PET-45*45 100
PET-50*20 100
PET-50*25 100
PET-50*30 100
PET-50*35 100
PET-50*40 100
PET-50*45 100
PET-50*50 100
PET-50*55 100
PET-50*60 100
PET-50*80 60
PET-50*100 60
PET-60*25 100
PET-60*30 100
PET-60*35 100
PET-60*40 100
PET-60*45 100
PET-60*50 100
PET-60*60 60
PET-60*80 60
PET-60*100 60
PET-65*25 60
PET-65*45 60
PET-65*65 60
PET-80*25 60
PET-80*35 60
PET-80*40 60
PET-80*45 60
PET-80*50 60
PET-80*55 60
PET-80*60 60
PET-80*80 36
PET-80*100 36
PET-100*50 60
PET-100*60 36
PET-100*80 36
PET-100*100 36
Silver-Grey（White）Insulated Distribution

Silver-Grey（White）Insulated Distribution

● Material: SouthAsia rigid PVC(gray), good insulation, no spontaneous combustion, temperature resistance to 85°C.
● Product structure: composed of groove bottom and groove cover two parts, both sides of the bottom groove provided with line holes.

Contact Us Return
  • Silver-Grey（White）Insulated Distribution
Models(H*W)PXC3- Packing quantity
PCS		 TL
(mm)
PET-20*15 200 2M
PET-20*20 200
PET-20*25 200
PET-20*30 _ 200
PET-25*25 . 200
PET-30*15 . 200
PET-30*20 . 200
PET-30*25 . 100
PET-30*30， 100
PET-30*35 . 100
PET-30*40 100
PET-30*45 100
PET-30*50 100
PET-35*25 . 100
PET-35*30 100
PET-35*35 100
PET-35*40 . 100
PET-40*25 100
PET-40*30 100
PET-40*35 _ 100
PET-40*40 100
PET-40*45 100
PET-45*25 100
PET-45*45 100
PET-50*20 100
PET-50*25 100
PET-50*30 100
PET-50*35 . 100
PET-50*40 100
PET-50*45 100
PET-50*50 100
PET-50*55 100
PET-50*60 100
PET-50*80 60
PET-50*100 60
PET-60*25 100
PET-60*30 100
PET-60*35 100
PET-60*40 100
PET-60*45 100
PET-60*50 100
PET-60*60 60
PET-60*80 60
PET-60*100 60
PET-65*25 60
PET-65*45 60
PET-65*65 60
PET-80*25 60
PET-80*35 60
PET-80*40 60
PET-80*45 60
PET-80*50 60
PET-80*55 60
PET-80*60 60
PET-80*80 36
PET-80*100 36
PET-100*50 60
PET-100*60 36
PET-100*80 36
PET-100*100  36
About Us
Pulte Electric Technology (Wenzhou) Co., Ltd.
Pulte Electric Technology (Wenzhou) Co., Ltd. is a China Custom Wiring Equipment Manufacturer and Sale Wiring Equipment Factory specializing in producing cable connectors, waterproof junction boxes, and other electrical product accessories. The company was born in the electrical town known as the "China Electrical Capital". It is a professional modern enterprise integrating R&D, production, and sales. Focusing on the brand building of Pulte "PULTE", with excellent technical crispness and efficient quality assurance, satisfactory and thoughtful sales service, and reasonable and affordable prices, its various technical indicators and product performance are better than its peers, and are widely used in junction boxes, distribution cabinets, communication equipment, instruments, and meters, medical equipment, machine tools, artificial intelligence, automation equipment, and other fields: constantly innovating, developing new products, forming a series of waterproof cable connectors, waterproof junction boxes, cold blocking parts, cable connector accessories, hose waterproof connectors and other products. At the same time, Wenzhou Pulte International Trade Co., Ltd., a subsidiary of the company, actively expands the international market and is committed to providing high-quality products and services to global customers, effectively broadening the company's market channels, enhancing market competitiveness, and laying the foundation for expanding the scale of the enterprise. The company has strong technical strength and is jointly established by industry veterans. It has a professional position in the field of cable connector manufacturing. We have a complete quality assurance system and rich design and manufacturing experience. Our products are widely used in various industries and are highly reliable. We provide professional and high-quality cable-supporting products for customers. We believe that there is a product that meets your needs in our complete series of products.
Certificate Of Honor
  • CERTIFICATE OF HONOR
  • CERTIFICATE OF HONOR
  • CERTIFICATE OF HONOR
  • CERTIFICATE OF HONOR
  • CERTIFICATE OF HONOR
  • CERTIFICATE OF HONOR
News

Industry Knowledge Extension

What is Wiring Equipment? What are the characteristics?

Wiring equipment encompasses the vast array of components, tools, and materials used to facilitate the safe, efficient, and organized installation, protection, and management of electrical circuits. Without this category of products, modern electrification would be impossible. The characteristics of wiring equipment are universally defined by a focus on safety, functionality, and durability.

The defining characteristic is Safety and Protection. The primary role of much wiring equipment is to prevent electrical hazards. This includes protecting the wires themselves from damage (abrasion, crushing, moisture) and, more importantly, protecting people and property from the dangers of electricity. Conduit and cable trunking shield wires from physical impact and environmental factors. Enclosures and junction boxes contain live connections to prevent accidental contact. Cable glands provide a sealed, strain-relieved entry point into equipment, maintaining ingress protection ratings. This focus on safety is non-negotiable and is often codified by strict international standards (e.g., UL, IEC, NEC).

The second key characteristic is Organization and Management. A safe electrical system is also an organized one. Wiring equipment is designed to tame chaos, ensuring circuits are easy to install, trace, and maintain. Cable ties, clamps, and cleats keep bundles of wires neat and secure, preventing tangles and reducing stress on termination points. Wiring ducts (or raceways) and ladder racks provide dedicated pathways for routing cables through buildings and data centers. This organization is critical for troubleshooting faults, performing upgrades, and ensuring proper airflow to prevent overheating in dense panels.

Wiring equipment is defined by its Durability and Environmental Suitability. These components are engineered to perform reliably in their intended environment for years. Materials are carefully selected for properties like UV resistance for outdoor use, corrosion resistance for industrial or marine settings, and flame retardancy for interior spaces. A plastic cable tie for bundling office cables is very different from a stainless steel, heavy-duty clamp for securing cables on an offshore oil rig. This characteristic ensures the longevity and integrity of the electrical installation despite exposure to heat, cold, chemicals, moisture, and physical wear.

WHAT ARE THE ROLE OF Electrical Wiring Supplies, Equipment & Products

The world of electrical wiring supplies is extensive, covering everything from the raw wire itself to the final connector on a device. These products can be broadly categorized into three key functional groups: Conduction and Connection, Protection and Containment, and Support and Organization.

1. Conduction and Connection Products: This is the core of any electrical system—the components that actually carry and manage the electrical current.

Wire and Cable: The fundamental building blocks, available in various gauges (sizes), insulation types (THHN, MTW, etc.), and configurations (single conductor, multi-conductor, coaxial, data cable).

Terminals and Connectors: These products create secure and reliable points of connection. This includes wire nuts and push-in connectors for splicing, spade and ring terminals for terminating wires to screws, and a vast array of plugs, sockets, and pin connectors for equipment.

Termination Blocks: Provide a structured and modular way to connect multiple wires together within a control panel or junction box, simplifying wiring and allowing for easy circuit modification.

2. Protection and Containment Products: This category is dedicated to safeguarding the electrical system from external damage and protecting users from electrical shock.

Conduit and Trunking: Rigid (EMT, PVC) or flexible (LFMC) metal and non-metallic tubes that physically enclose wires, protecting them from impact, moisture, dust, and chemicals. Trunking is a larger, often rectangular raceway used for surface mounting.

Circuit Protection Devices: Essential safety components that automatically shut off power in abnormal conditions. This includes fuses (which break by melting) and circuit breakers (which trip and can be reset) to protect against overcurrent and short circuits.

Enclosures and Boxes: Junction boxes, outlet boxes, and panel enclosures house connections, devices, and controls, preventing accidental contact with live parts and offering environmental protection rated by IP (Ingress Protection) or NEMA standards.

3. Support and Organization Products: These items are the unsung heroes that ensure an installation is professional, maintainable, and reliable over its lifetime.

Cable Management: This includes cable ties, clamps, and cleats to bundle and secure wires; cable trays and ladder racks to support large cable runs overhead; and wiring ducts (finger duct) to neatly route wires inside panels.

Tools and Installation Aids: Specialized tools are wiring supplies in their own right. Wire strippers, crimpers, cutters, cable pullers, and voltage testers are all essential for a safe and correct installation.

Identification and Labeling: Products like wire markers, heat-shrink labels, and printable tags are critical for compliance and maintenance. They allow electricians to easily identify circuits, phases, and destinations, making troubleshooting and modifications far safer and more efficient.
