China Crimping Cap

Product
Pulte Electric Technology (Wenzhou) Co., Ltd. Home / Product / Agent's Choice / Wiring Equipment / Crimping Cap

Crimping Cap Manufacturer

  • Screw Cap

    Parameters:

    Models H V D Applicable cable Packing quantity(mm) (mm) (mm) (mm) PET-P71 15 8.7 6.5 MIN#20*1...
    read more
    Screw Cap
  • Safety Crimping Cap

    Parameters:

    Models H wide (mm) D Applicable cable Packing quantityPCS (mm) B C (mm) mm2 AWG PET-φ3 17.8 ...
    read more
    Safety Crimping Cap
Screw Cap

Screw Cap

● Product material: UI-approved nylon 66, fire rating 94-20
● Usage: Peel off the outer skin of the end of the wire insert it into the casing, and press it tightly with wire crimping pliers.
● Product features: the shell is nylon injection molding, the internal copper tube is long, the increase of wire crimping range makes it easier to conduct electricity, and more able to clamp the wire, even if the strong vibration does not fall off.

Contact Us Return

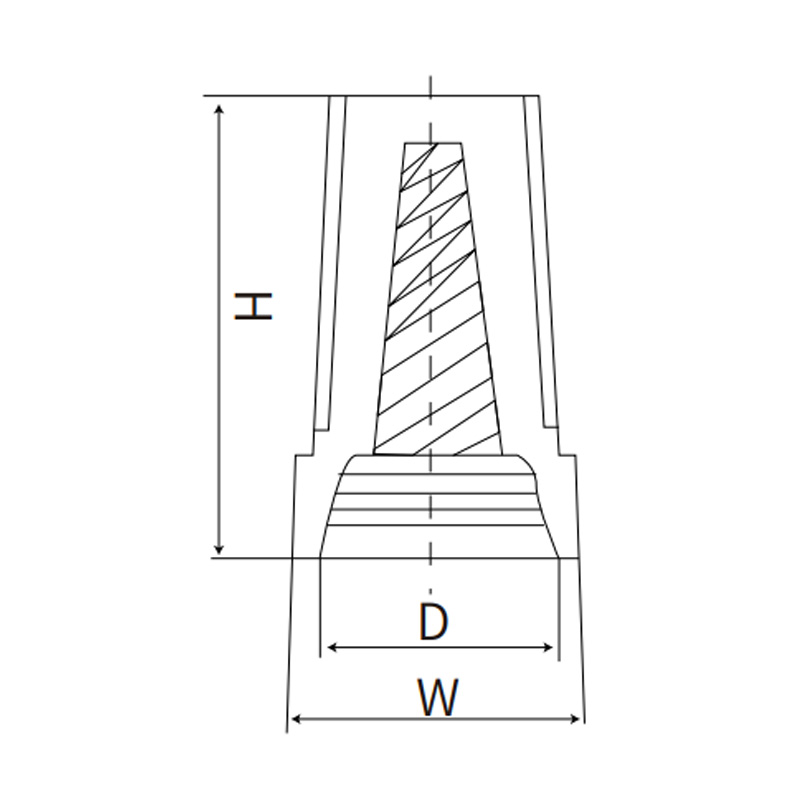

  • Screw Cap
Models H V D Applicable cable Packing quantity
(mm)
(mm) (mm) (mm)
PET-P71 15 8.7 6.5 MIN#20*1+#22*1 MA#16*2 10OPCS
&
1000PCS
PET-P72 18 10 7.5 MIN#20*3 MA#16*3
PET-P73 23 11.2 9.5 MIN#20*3 MA#16*3+#18*1
PET-P74 24 13.6 10.8 MIN#14*1+#18*1 MIN#14*1+#18*1
PET-P75 27.8 16.1 12.7 MIN#18*2 MA#12*3
PET-P1 22 19 9.8 MIN#18*2 MA#12*3
PET-P2 29 22 12.5 MIN#14*2 MA#10*4
PET-P3 33.2 27 14 MIN#12*3 MA#10*4
PET-P4 39.6 30.5 17.5 MIN#12*3 MA#6-1+#8*2
Safety Crimping Cap

Safety Crimping Cap

● Product material: UI-approved nylon 66, fire rating 94-20
● Usage: Peel off the outer skin of the end of the wire insert it into the casing, and press it tightly with wire crimping pliers.
● Product features: the shell is nylon injection molding, the internal copper tube is long, the increase of wire crimping range makes it easier to conduct electricity, and more able to clamp the wire, even if the strong vibration does not fall off.

Contact Us Return

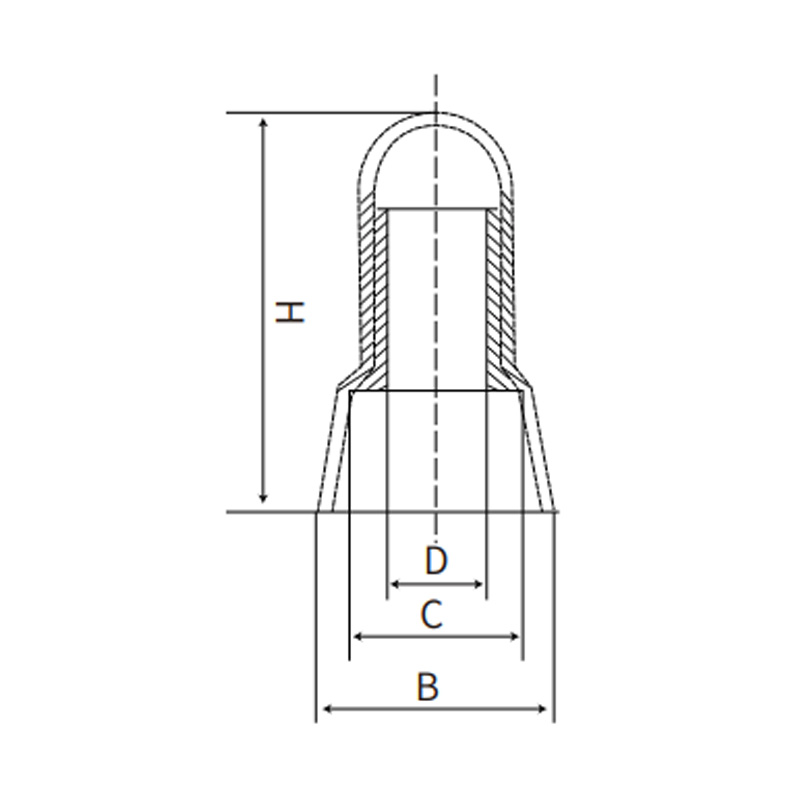

  • Safety Crimping Cap
Models H wide (mm) D Applicable cable Packing quantity
PCS
(mm) B C (mm) mm2 AWG
PET-φ3 17.8 7.2 5.5 2.5 1.3 22-16 100PCS
&
1000PCS
PET-φ4 21 8.2 5.8 29 2 16-14
PET-φ5 22.5 9 6.7 3.9 5.5 12-10
PET-φ6 25.2 10 7.8 4.5 8 8
PET-φ7 24.2 11 9.4 5.4 10 8-6
PET-φ8 25.6 11.8 10.2 6 13 6
PET-φ10 29.5 13.5 9.3 7.5 16 4 100/500PCS
About Us
Pulte Electric Technology (Wenzhou) Co., Ltd.
Pulte Electric Technology (Wenzhou) Co., Ltd. is a China Custom Crimping Cap Manufacturer and Sale Crimping Cap Factory specializing in producing cable connectors, waterproof junction boxes, and other electrical product accessories. The company was born in the electrical town known as the "China Electrical Capital". It is a professional modern enterprise integrating R&D, production, and sales. Focusing on the brand building of Pulte "PULTE", with excellent technical crispness and efficient quality assurance, satisfactory and thoughtful sales service, and reasonable and affordable prices, its various technical indicators and product performance are better than its peers, and are widely used in junction boxes, distribution cabinets, communication equipment, instruments, and meters, medical equipment, machine tools, artificial intelligence, automation equipment, and other fields: constantly innovating, developing new products, forming a series of waterproof cable connectors, waterproof junction boxes, cold blocking parts, cable connector accessories, hose waterproof connectors and other products. At the same time, Wenzhou Pulte International Trade Co., Ltd., a subsidiary of the company, actively expands the international market and is committed to providing high-quality products and services to global customers, effectively broadening the company's market channels, enhancing market competitiveness, and laying the foundation for expanding the scale of the enterprise. The company has strong technical strength and is jointly established by industry veterans. It has a professional position in the field of cable connector manufacturing. We have a complete quality assurance system and rich design and manufacturing experience. Our products are widely used in various industries and are highly reliable. We provide professional and high-quality cable-supporting products for customers. We believe that there is a product that meets your needs in our complete series of products.
Certificate Of Honor
  • CERTIFICATE OF HONOR
  • CERTIFICATE OF HONOR
  • CERTIFICATE OF HONOR
  • CERTIFICATE OF HONOR
  • CERTIFICATE OF HONOR
  • CERTIFICATE OF HONOR
News

Industry Knowledge Extension

How to Choose a Screw Crimp Cap?

When it comes to securing electrical connections, screw crimp caps are an essential component. They ensure a safe and reliable connection, protecting wires from damage and ensuring electrical conductivity. But with various types available, how do you choose the right screw crimp cap for your needs?

Screw Crimp Cap Features:

1.1 Material and Durability: The type of screw crimp cap is often made from high-quality materials like brass or copper, ensuring durability and resistance to corrosion. This is crucial for long-lasting performance in various environmental conditions.

1.2 Ease of Use: These caps are designed for ease of use, with a simple screw-on mechanism that can be tightened by hand or with a wrench, making them accessible for both professionals and DIY enthusiasts.

1.3 Secure Connection: Type 1 screw crimp caps provide a secure connection, thanks to their tight seal and the crimping process that ensures a firm grip on the wires.

Screw Crimp Cap Features:

2.1 Versatility: The second type of screw crimp cap is known for its versatility, accommodating a wide range of wire sizes and types, making them suitable for various applications.

2.2 Insulation: These caps often come with insulation properties, providing an additional layer of safety by preventing electrical shorts and reducing the risk of electrical shock.

2.3 Aesthetic Appeal: Type 2 screw crimp caps are not only functional but also aesthetically pleasing, with a range of colors and finishes available to match different wiring setups.

Features of Twist-On Wire Connectors

3.1 Twist-On Convenience: Twist-on wire connectors offer a quick and easy solution for wire connections. Part 1 will focus on their convenience, as they eliminate the need for tools and can be tightened by hand.

3.2 Reliability: These connectors are known for their reliability, providing a strong connection that can withstand vibrations and stress, ensuring the longevity of the electrical system.

3.3 Cost-Effectiveness: Twist-on wire connectors are often more cost-effective than other types of connectors, making them an attractive option for budget-conscious projects.

Features of Twist-On Wire Connectors

4.1 Wide Application: In Part 2, we'll discuss the wide range of applications for twist-on wire connectors, from home wiring to industrial settings, showcasing their versatility.

4.2 Ease of Installation: The ease of installation is another feature that sets twist-on wire connectors apart. They require minimal training, reducing the time spent on wire connections and increasing overall efficiency.

4.3 Safety Features: Safety is paramount in electrical work, and twist-on wire connectors often include features like built-in strain relief and insulation, reducing the risk of electrical hazards.

What is the Value of Electrical Crimp Caps?

5.1 Safety and Security: The value of electrical crimp caps cannot be overstated. They provide a secure connection that prevents electrical shorts and ensures the safety of the electrical system.

5.2 Longevity and Durability: Crimp caps are designed to last, with materials that resist corrosion and wear, ensuring the longevity of the electrical connections.

5.3 Compliance with Standards: Many electrical crimp caps are designed to comply with industry standards, ensuring that your electrical connections meet the necessary safety regulations.

5.4 Cost-Effective Solution: While the initial cost of crimp caps may seem high, the long-term savings in terms of maintenance and replacement costs make them a cost-effective solution for electrical connections.

5.5 Versatility: The versatility of crimp caps allows them to be used in a wide range of applications, from residential wiring to complex industrial setups, making them a valuable asset in any electrical project.
